If you are a merchant that uses the Klaviyo marketing platform, then you will be familiar with their Flow automations. A great new feature of Grapevine Surveys is the ability for a survey response to be set as the Trigger for a Klaviyo Flow.
The benefits of this new feature are almost limitless:
- Segmentation: Segmenting your Klaviyo audience based on survey responses ensures that tailored emails can be sent with content relevant to the survey topic.
- Engagement: Follow up on survey responses with a promotional offer, or an invite to further relevant surveys.
- Feedback: Follow-up emails for additional insights or to address any concerns highlighted within the initial survey response.
- Thank Customers: Show appreciation to respondents for taking the time to participate in the survey. A great way to maintain positive customer relations.
There are many scenarios where this new feature can be the impetus for further positive engagement.
This article will walk you through the simple steps required to set up a survey response as a Klaviyo Flow Trigger.
Please Note:
Please ensure that the Klaviyo integration has been enabled within your Grapevine settings before commencing. Our guide How to enable the Klaviyo integration will walk you through the simple steps required.
Prerequisites
1. An active Klaviyo account.
2. Klaviyo integration has been enabled within Grapevine Surveys app
3. Your survey has been already been created within Grapevine Surveys app
Setting up the Survey Response as Flow Trigger

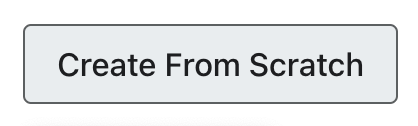

1. Within Klaviyo, navigate to Flows > Create Flow > Create from Scratch:

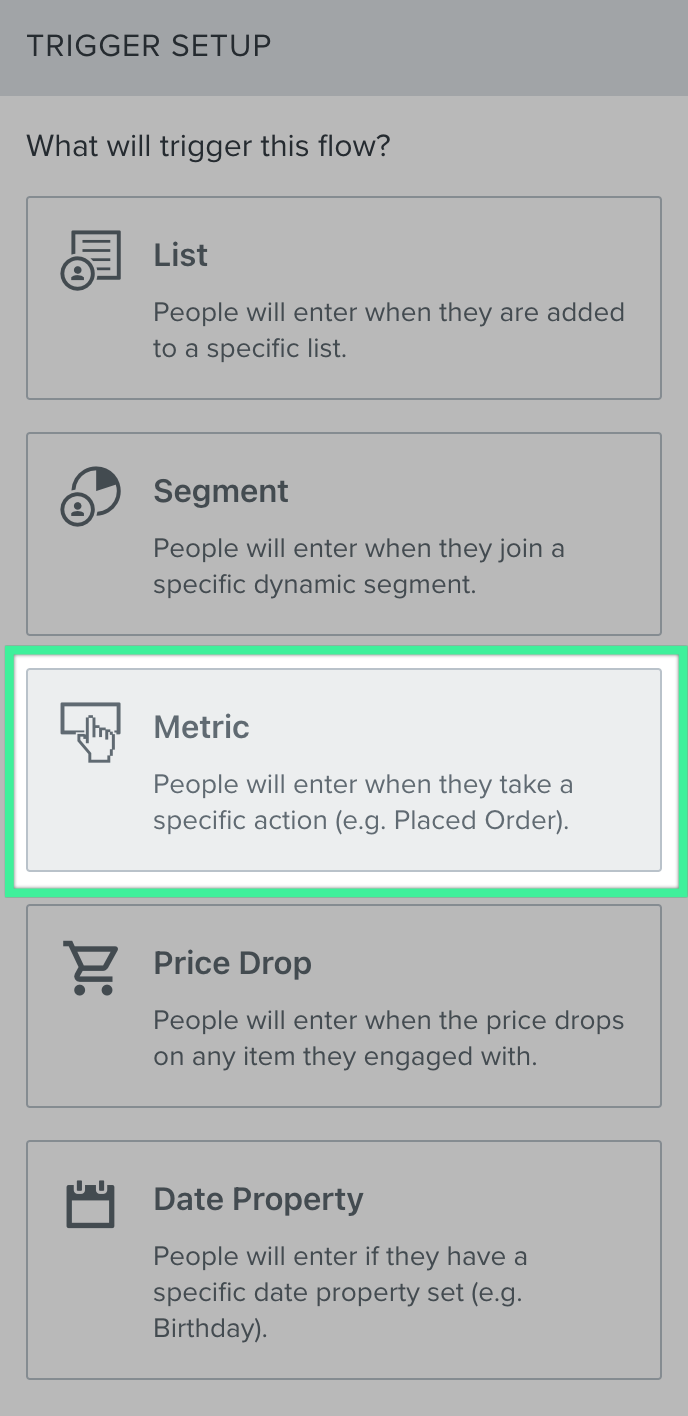

2. Select Metric as the trigger type:

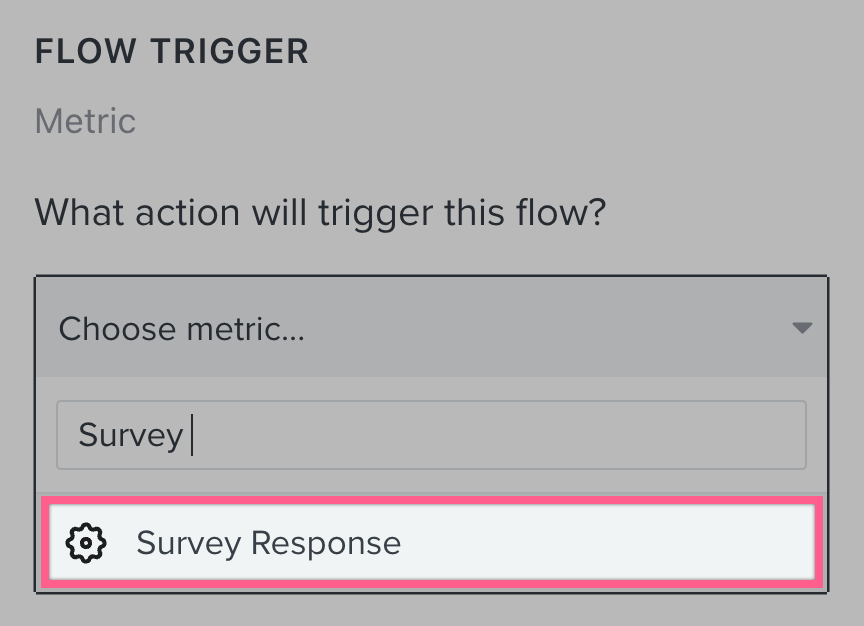

3. Within the Metric list, search for survey and then select Survey Response :

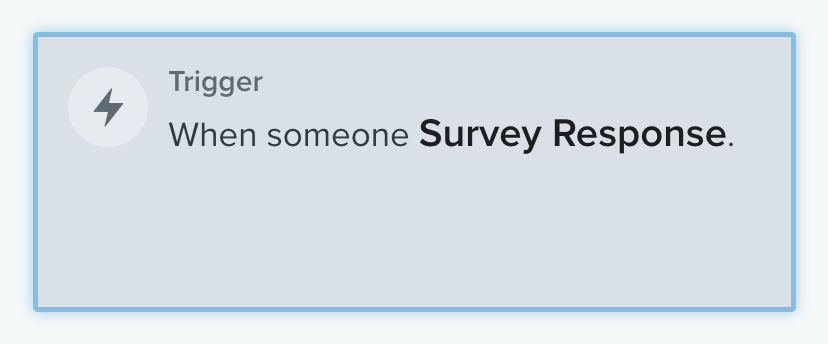

4. The Flow map will update to show Survey Response as the Flow Trigger:
Don't click Done just yet though, first we will add a Trigger Filter!
Specify the Survey to be used with Flow Trigger filters
5. To apply our Klaviyo Flow for one specific survey we will need to locate and copy the survey code. This code can be located within several areas of the Grapevine app:

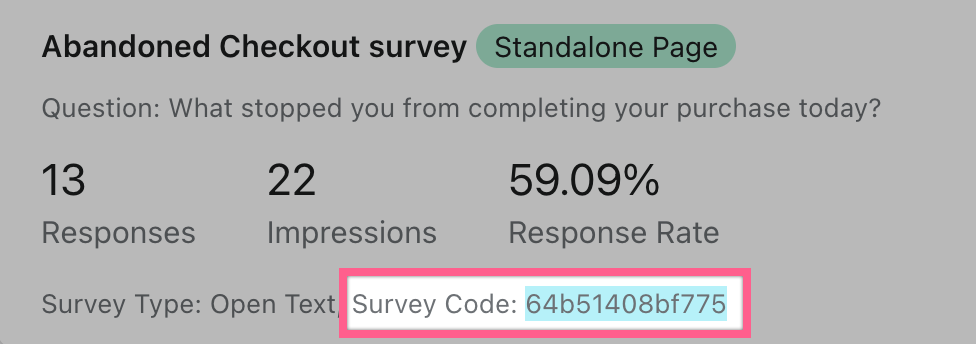

Survey card within list view:

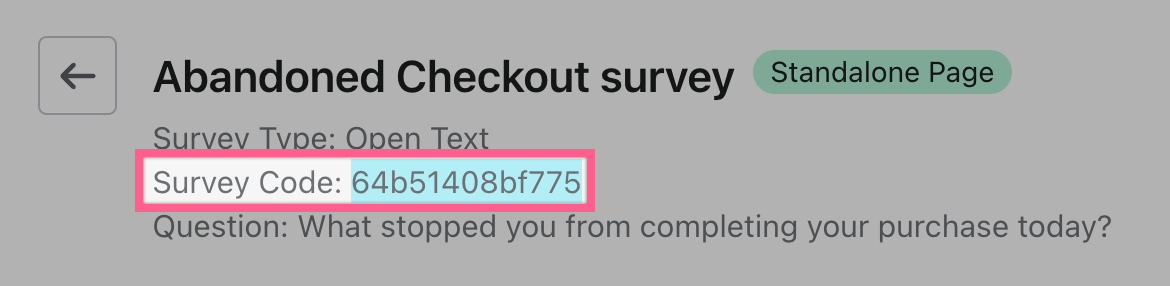

Details within survey view:

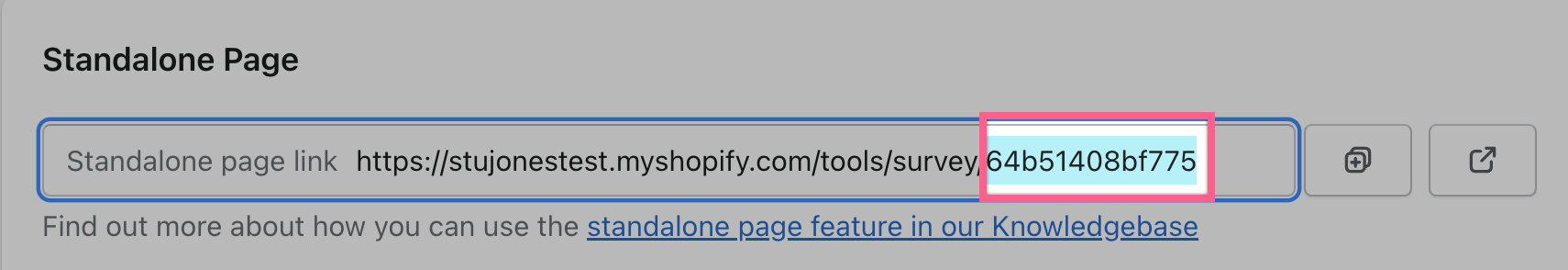

At the end of Standalone survey URL:
Filtering the flow to a specific survey code is an important step. Without this filter, the flow could be triggered by any responses received for other live surveys that you may have live. This could result in customers receiving emails with a completely different subject matter to the survey they answered.
* Apply flow to Specific Question code - Add here or separate article?

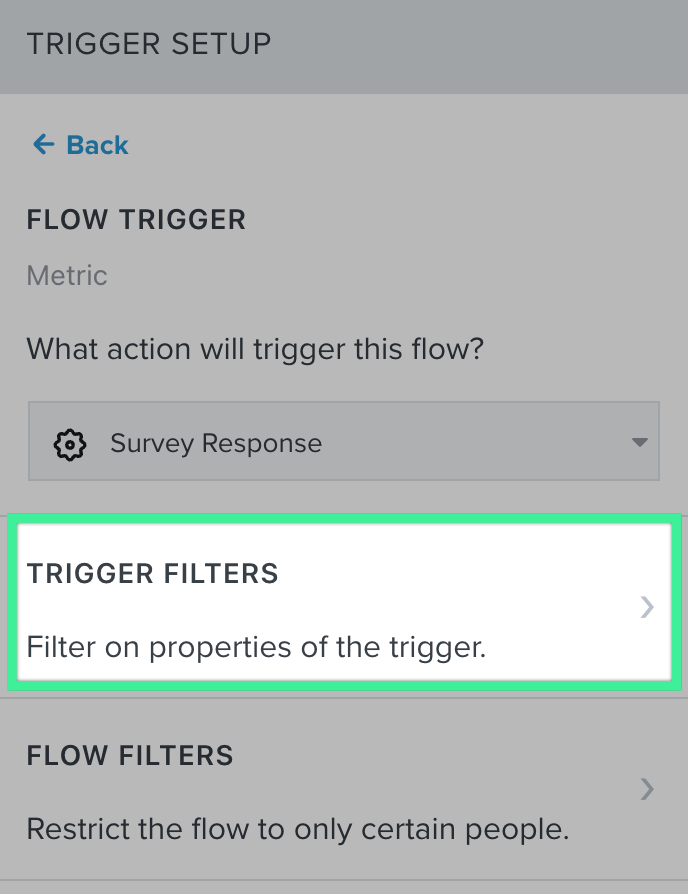

6. Click on the option for Trigger Filters:
7. Click on the Add a Trigger Filter button:
8. Within the Trigger Setup section we will fill the dimension and dimension values in the next step:

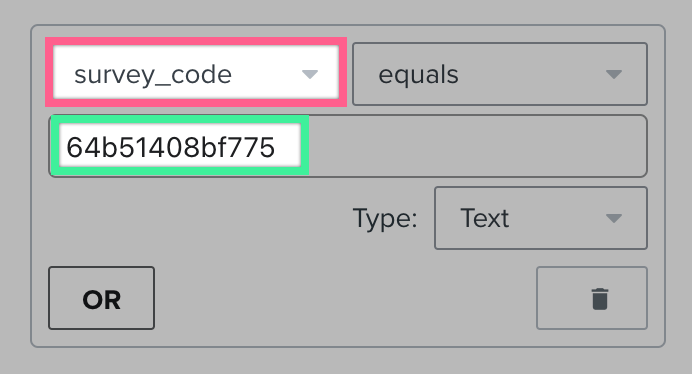

9. Select survey_code as the Dimension, and paste your survey code as the Dimension Value:
10. Click Save:
11: Then click Done:

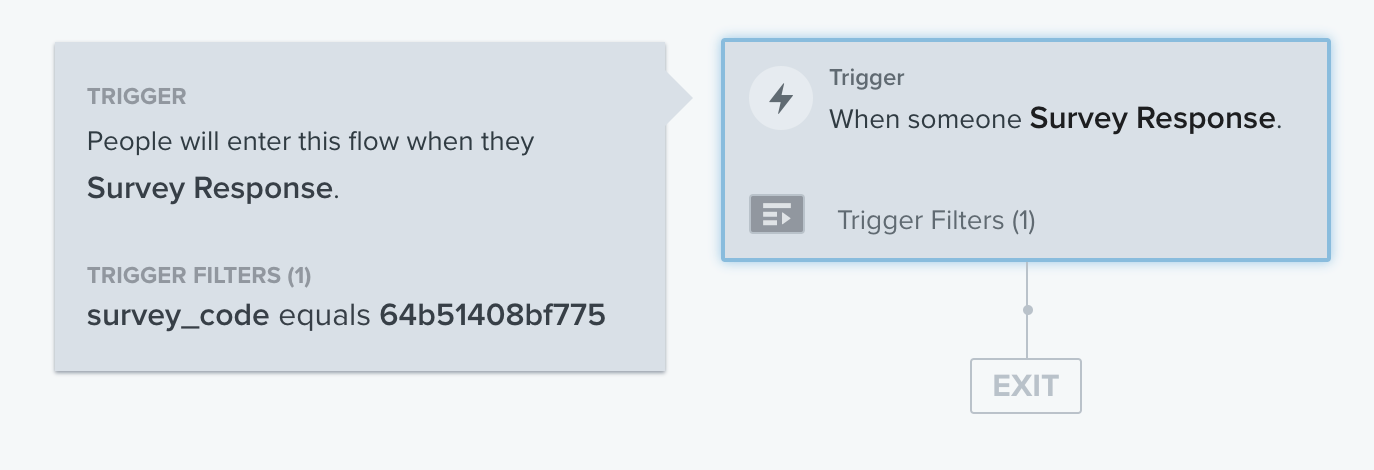

12: The Trigger Filter has now been saved to your Flow Map:
Splitting Email paths based on the Survey Answer
Depending on the type of Grapevine Survey questions you have created and the type of Email paths you intend to follow up with, we recommend that you get in touch for advice on how you might continue your Flow. We have a swift email support and would be happy to help you further with your specific flow. Please use the contact link at the bottom of this article.

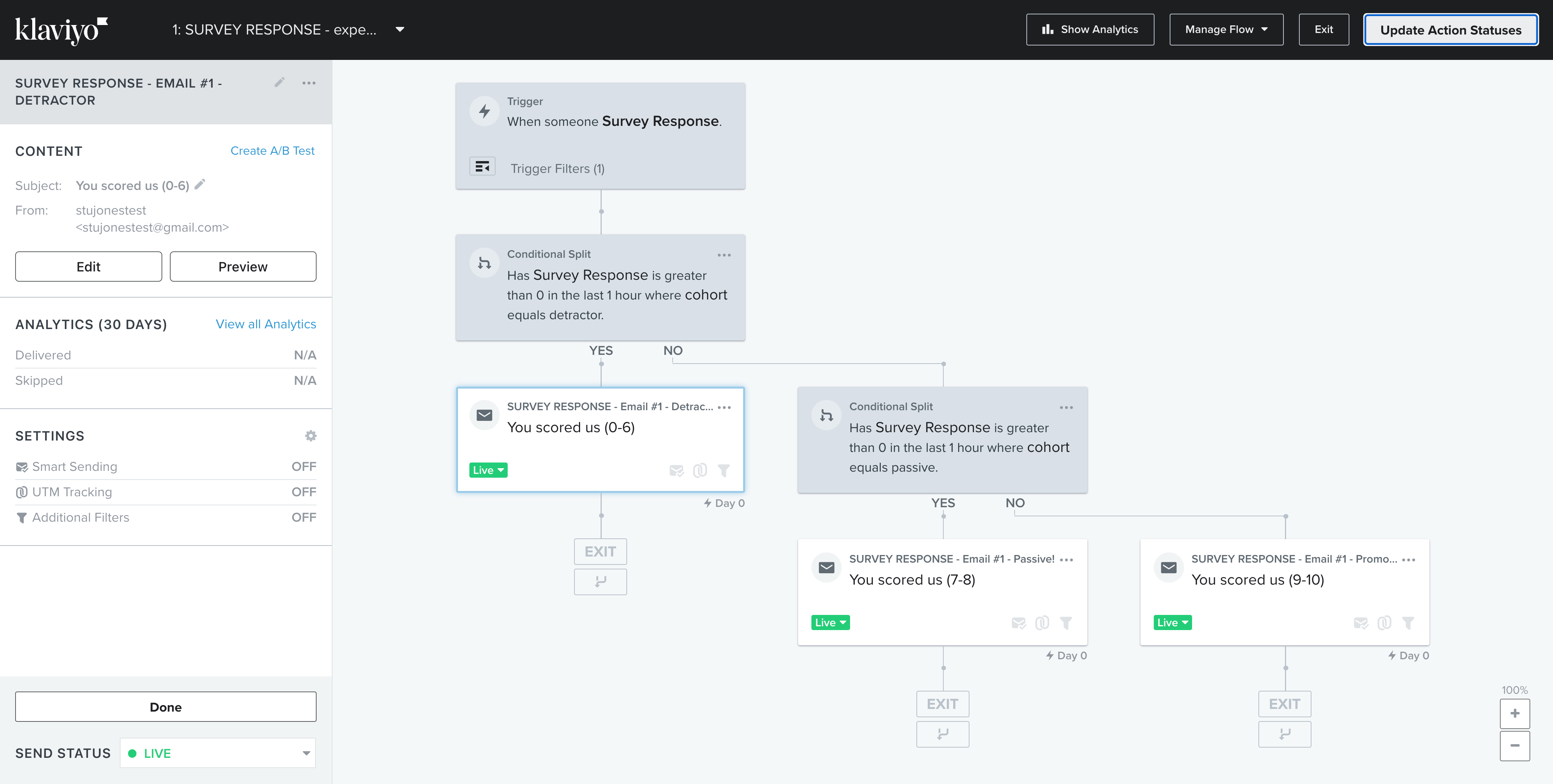

One example of how complex a Flow based on Survey Response can be, is to split the Flow based on the score of an NPS survey and send a different email to your Detractors, Passive respondents and Promoters:

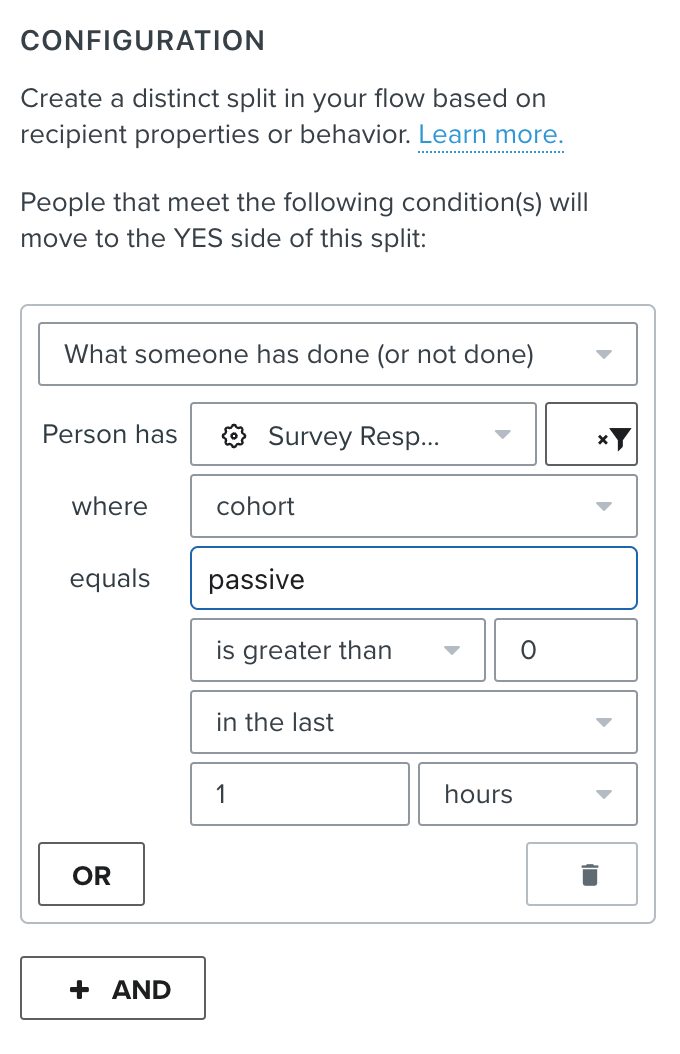

Here is how one of those configured splits might look:
Survey Responses reported to Klaviyo Profile

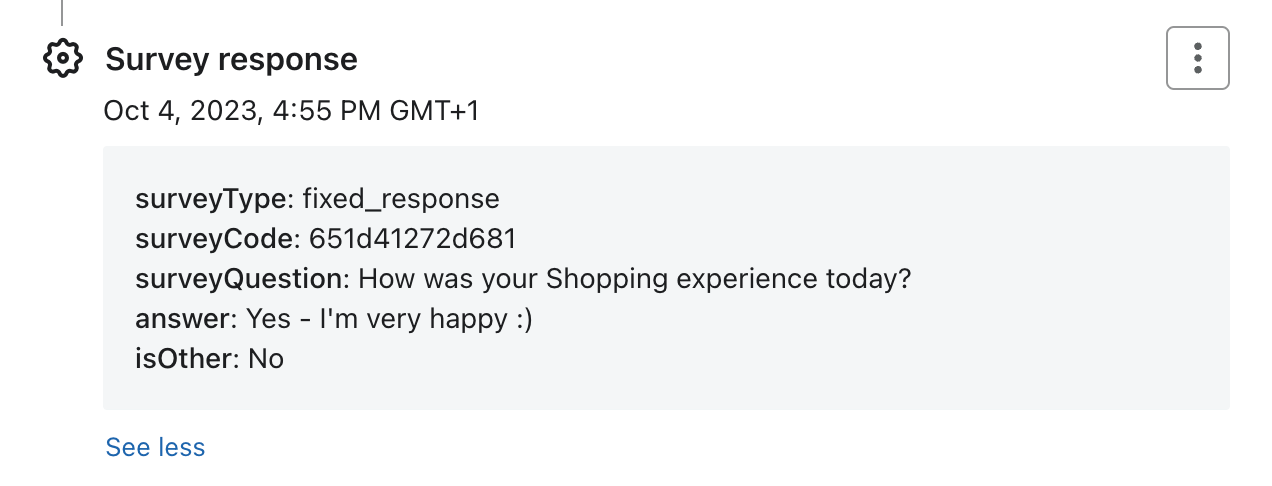

Survey Responses can be seen on the Activity section within a Klaviyo profile:
